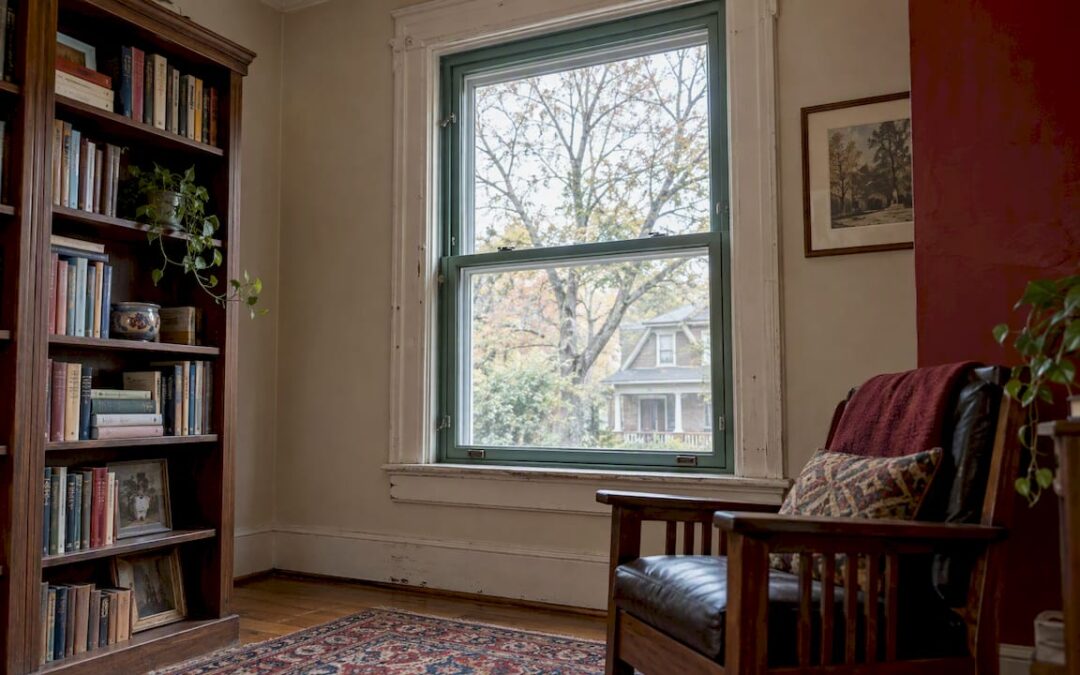

Energy Efficiency in Historic Windows: Restore, Don’t Replace

Energy Efficiency in Historic Windows: Restore, Don’t Replace

by | Oct 25, 2026 | Architectural Millwork

A historic wood window can be brought close to the performance of a modern replacement without losing its muntins, its old glass or its sightlines. The method is a three-part one: repair the sash and frame, seal the air leaks, and add a tight, well-made storm window, preferably with a low-e coating. The sections below cover what each step recovers, where the pitfalls lie, and how the work fits a historic tax credit review.

Gepettomillworks
Preserve Historic Windows, Improve Performance
Gepettomillworks creates custom millwork for historic building projects, supporting work that respects the character of older windows.

Explore custom millwork

TL;DR

  • Most heat loss in an old window comes from air leaking around the sash and frame, not only from the single pane of glass, so repair and weatherstripping come first.
  • Low-e storm windows cut whole-house heating energy by 19-27% in the Chicago winter study cited below, against 8-18% for clear storms, at a fraction of the cost of replacement.
  • Replacement units rely on sealed glass that can fail, while a restored wood sash can be repaired indefinitely.
  • Under the Secretary of the Interior’s Standards, energy upgrades are permitted when they do not destroy historic character, which is why early consultation with the reviewing office matters.
  • Interior storm windows must be the tighter layer, or condensation will form in the cavity and damage the historic frame.

Table of Contents

What Actually Makes an Old Window Lose Energy

The common assumption holds that the single pane is the culprit, and the glass does contribute. Yet practitioners working with the National Park Service point out that in historic buildings the loss is frequently tied more to air leakage around frames and sash pockets than to the glass itself (NPS, Weatherization of Historic Buildings). A sash that has shrunk with age, a failed glazing putty line, a parting bead that no longer seats, and cord pockets open to the wall cavity together admit far more cold air than a clear pane can radiate away.

The Department of Energy’s expert meeting report adds a useful discipline: window performance is an interaction of thermal conductance (U-factor), air leakage and solar heat gain (SHGC), and the best answer depends on climate and orientation. An improvement that saves energy in January can produce overheating in July (DOE, Windows Options for New and Existing Homes). The report encourages diagnostic work, such as a blower door test, to locate real sources of heat loss before assuming that new windows are the only remedy.

The National Park Service guidance on energy efficiency makes the same point at the scale of the building: assess the existing energy-saving characteristics first, because buildings are more than the sum of their components (Preservation Brief 3). Many historic structures were designed with operable windows, generous daylight and high thermal mass, qualities that whole-unit replacement tends to overlook (NPS Tax Incentives, Energy Efficiency and Sustainability).

Why Replacement Rarely Delivers the Promised Savings

The claim that new windows will cut energy bills in half is widely repeated. The National Park Service characterizes it as inaccurate, and the studies it cites show far more modest whole-house figures from storm windows alone, which already close much of the gap (NPS, Weatherization of Historic Buildings).

Two further considerations belong in any honest comparison.

Service life. Insulated glass units depend on a perimeter seal. NPS practitioners note that seals on replacement windows may fail in as little as 25 years, at which point the assembly is discarded; a restored wood window, by contrast, can be maintained indefinitely (NPS). Researchers at the Politecnico di Milano, writing on heritage buildings, argue that retrofit planning should account for the decay of performance over time, and that repairable components tend to deliver more operating-energy savings across their life than mass-produced units (Lavagna et al., life cycle operating energy saving).

Embodied impact. Manufacturing, shipping and installing a full replacement unit consumes materials and energy that restoration avoids, which is why NPS treats restoration as the preferred sustainability path.

A Boston study of a pre-1940 house compared the life-cycle costs of two residential window systems over time (Shirley, comparative study of cumulative energy use), and the broader literature keeps arriving at the same conclusion: the repaired original window with a storm is competitive on energy and superior on longevity.

The Three-Step Upgrade: Repair, Seal, Add a Storm

NPS recommends that code compliance in a historic rehabilitation can be reached without replacing the windows, through professional restoration of frames and glazing, weatherstripping to eliminate infiltration, and custom, tight-fitting storm windows that follow the profile of the primary sash (Preservation Brief 3).

Step 1: Restore the sash and frame

Restoration here means more than paint. A competent shop will remove the sash, strip failed finishes, consolidate or splice decayed rails and stiles in matching species, reglaze with new putty, rebalance the sash and re-seat the stops. Each of these closes a path for air. Where a sash is beyond repair, an exact replica with the same muntin profiles, glass thickness and joinery preserves the appearance and the tax credit position.

Carpenter fitting a splice into historic sash rail

Step 2: Weatherstrip for air tightness

Spring-bronze or compression weatherstripping along the jambs, meeting rail and head addresses the leakage that the single pane never causes. This step is inexpensive relative to its effect, and it is invisible once installed.

Step 3: Add a low-e storm window

The Department of Energy webinar material reports Chicago results for whole-house heating energy over a winter: 8-18% for clear storm windows and 19-27% for low-e storms, with a simple payback of 4-5 years for low-e coated storms (DOE, Cost Effective Triple Pane and Low E Storm Windows). A DOE success story describes low-e storm windows as a cost-effective efficiency measure whose performance has been validated for market acceptance (EERE success story). NPS notes that high-performance attachments can approach the thermal savings of double-pane replacements at under one-third of the cost (NPS).

Winter heating savings and payback for storm windows

These figures come from cold-climate testing in Chicago. In the Mid-Atlantic and Carolinas, where our work concentrates, heating loads are lower and cooling matters more, so the solar heat gain of any low-e coating deserves attention on south and west elevations.

Comparing the Options

Approach Typical effect on air leakage Effect on historic fabric Repairable later?
Restoration plus weatherstripping Large reduction Original sash retained Yes
Restoration plus low-e storm Largest reduction in conductance and leakage Original sash retained; storm is reversible Yes, both layers
Clear storm window only Moderate Reversible Yes
Full replacement with insulated glass Low leakage when new Original sash and often glass lost Generally not once seals fail

The table is qualitative. Actual savings depend on the condition of the existing window, the building envelope and the climate, which is why a diagnostic assessment should precede any specification.

Avoiding the Condensation Trap

Adding an interior storm window improves thermal performance considerably, but it changes how moisture moves. If the interior unit leaks, humid room air enters the cold cavity between storm and sash and condenses on the historic glass and frame. Preservation Brief 3 addresses this directly: in cold climates the interior storm should be the tighter of the two units, with gaskets maintained (NPS Preservation Brief 3).

Three practical rules follow. Gasket the interior storm so that it seals completely. Allow the exterior sash a small path to vent moisture outward where an exterior storm is used. Inspect the gaskets each autumn before the heating season.

Bathrooms and kitchens deserve particular care. A wood window set in a shower wall or beside a tub is exposed to constant moisture, and its sill and surround must be detailed to shed water. A practical guide to shower window waterproofing explains how the surrounding assembly can be sealed so that a restored sash survives in a wet room.

Historic Tax Credits and Energy Upgrades

Owners of income-producing properties and, in Virginia, of qualifying owner-occupied homes often pursue rehabilitation tax credits. The Secretary of the Interior’s Standards for Rehabilitation do not forbid energy improvements. They require that the work not destroy historic character. Solutions that tend to pass review include painting storm windows to match the sash color, aligning the storm’s meeting rail with the historic sash, and choosing unobtrusive interior units (NPS Tax Incentives).

The Virginia Department of Historic Resources notes that the Part 2 application asks for each significant architectural feature and the specific work planned on it, to certify that the proposal appears consistent with the Standards (Virginia DHR, Historic Rehabilitation Tax Credits). Windows are among the features most often scrutinized, so the Part 2 narrative should describe the repair of each sash, the profile of any storm window and the weatherstripping method.

The cost evidence from a steel-window case is instructive. In the Lippincott Press Building rehabilitation, window repair and interior storm installation cost $708,800 within a $12.1 million total budget, and the project met both energy code and the Standards (NPS Preservation Brief 3). The example concerns steel, not wood, but it shows that repair with interior storms is a workable path to code in a certified project.

Perspective: What We See at the Bench

We build and restore windows for historic buildings across Virginia, West Virginia, the Carolinas, Maryland and the District of Columbia, and the pattern in our shop is consistent. A window arrives or is surveyed in place, and the owner is convinced it must go. After the sash is opened, the glass is usually sound and the trouble sits in the joinery, the stops and the weatherstripping, all of which can be corrected with the original wood.

We approach energy performance as part of the restoration drawing rather than as an afterthought. Where a sash is too far gone, we replicate it with authentic materials and techniques, matching the muntin profile and the glazing so that the result satisfies a preservation reviewer. Where an architect needs a storm window detailed to sit behind the original rails, we would rather resolve that at the design stage than at the submission stage.

Our view is that the most energy-efficient window is one that remains in service for another century, and that the most responsible upgrade is the smallest one that achieves the target.

— Gepetto

Working With Us on Historic Windows

If you are an architect, contractor or owner planning window work on a historic building, our historic window restoration service covers repair, reglazing and weatherstripping of existing sash. Where new units or exact replicas are required, our wooden windows are fabricated to period profiles. Bring us in early, ideally before the Part 2 narrative is drafted, so that the window scope, the storm detail and the energy goal are settled together. Our energy efficiency archive collects further notes on the subject.

FAQ

Are historic windows really that inefficient?

A single pane does conduct heat readily, but much of the loss in historic buildings comes from air leaking around frames and sash pockets. Once that leakage is sealed and a storm window is added, the gap to a new window narrows considerably, as the NPS material cited above explains.

Is a low-e storm window worth the cost?

In the DOE’s Chicago figures, low-e storms saved 19-27% of whole-house heating energy over a winter, with a simple payback of 4-5 years. Your own result depends on climate, window condition and fuel cost, so a blower door test or an energy audit will give a sounder estimate than any average.

Will adding storm windows affect historic tax credit approval?

Not if the work respects the building’s character. Reviewers look at whether storm windows align with the sash, match its color and remain unobtrusive. Discussing the proposal with the state historic preservation office before submission reduces the risk of changes later.

Can I install double-pane glass in a historic sash?

Sometimes, but the heavier insulated unit may require wider muntins or a modified sash, which can conflict with the Standards. It is a decision to take with your preservation reviewer and a millwork specialist, not a default.

How long will a restored wood window last?

With regular painting, glazing upkeep and gasket checks, a restored wood window can be maintained indefinitely, according to NPS practitioners, whereas sealed glass units in replacements can fail in as little as 25 years.

Sources

Custom Historic Door Thresholds: Profiles, Fit and Approval

Custom Historic Door Thresholds: Profiles, Fit and Approval

by | Oct 24, 2026 | Architectural Millwork

A custom historic door threshold is a piece milled to the measured profile of an existing sill and doorway, in a species and section that match the period fabric, and fitted so that it sheds water and air while remaining acceptable to a preservation reviewer. Catalog thresholds of aluminum or stock pine rarely satisfy all three conditions. This guide sets out how architects, contractors and owners of historic buildings should specify one, what the documentation should contain, and where thresholds most often fail.

Gepettomillworks
gepettomillworks.com
Match Historic Doors with Custom Millwork
Gepettomillworks creates custom millwork for historic building projects, supporting the fit and character of a historic doorway.

Explore custom millwork

TL;DR

  • A threshold is not the sill. The sill is the bottom member of the door frame, while the threshold is the separate, usually sloped piece capping it, so decide first which of the two you are actually replacing.
  • Custom means measured: profiles should be traced from the existing opening and supported by photographs and scaled sections, which is what tax credit reviewers expect.
  • Height matters. The U.S. Access Board permits existing or altered thresholds up to 3/4 inch with a beveled edge, and the NPS suggests bevels or removal where a historic threshold is too high.
  • Correct the water path before milling the final piece, or the new threshold will simply rot at the same joint.
  • Treat the threshold as part of the doorway assembly of frame, trim, sill and door, not as an accessory.

Table of Contents

Sill, threshold and saddle: getting the terms right

Specifications go wrong at the vocabulary stage. In a traditional door assembly the frame comprises the head, the jambs and the sill, and the sill sits at the bottom of the frame while the threshold is a sloped piece installed over it to help keep water and drafts out. Trade usage also offers “saddle” and, in some regions, “door stool”, and these are not consistent from one shop to the next.

The practical consequence is that a request for a “custom threshold” may mean any of three different jobs:

  1. A new capping threshold over a sound existing sill, the simplest case.
  2. A new sill with an integral threshold profile, common on nineteenth-century entrances where the sill itself is a heavy, shaped timber, often with the door’s bottom rail designed to meet it.
  3. A sill and threshold replaced together because rot has reached the frame, which then involves the jamb feet and the trim, and sometimes the door.

A site visit should settle which of these applies before any drawing is made. When the sill is only worn, repair comes first. NPS guidance on rehabilitating historic buildings sets an order of protecting character-defining materials, then repairing, and replacing only when deterioration is too extensive. A threshold swapped out when a dutchman or epoxy consolidation would have sufficed is a difficult choice to defend in a review.

What a historic threshold actually looks like

The profile of a period threshold tells the story of the building. Federal and Greek Revival entrances in Virginia and the Carolinas often carry a wide, shallow, gently pitched oak or heart pine sill, worn into a shallow dish by two centuries of traffic. Victorian porches tend to carry a thicker, more heavily molded piece, frequently with a drip groove and a rabbet that receives the door’s bottom rail. Early twentieth-century bungalows may use a modest, flat-topped oak saddle with an under-cut nose, quite different from a Palladian doorway with its flanking sidelights and a deep stone or timber stoop.

The details worth recording before anything is removed include:

  • Overall width, thickness and length, including how far the piece runs into the jamb returns.
  • The slope of the top surface and the location of any drip groove or weather check.
  • The shape of the nose, whether bullnosed, square, or eased by hand.
  • The notches, or coping, where the threshold meets the jamb, casing and any door stop.
  • The species, grain orientation and growth-ring density where it can be judged.
  • The relationship to the finished floor inside and the landing, porch or step outside.

The reason is straightforward. The Oklahoma SHPO tax credit manual states that historic doorways are more than the doors alone, and that where elements cannot be retained, replacements must replicate the historic features and detailing, supported by documentation such as photographs and scaled sections. Although that is one state’s manual, it reflects the way federal reviewers think, and it is a sensible standard to apply anywhere.

Why stock thresholds fail on historic openings

Search results for this subject are dominated by stock products: an extruded aluminum threshold at 1/4 inch by 8 inches by 96 inches, a corrugated saddle seven inches wide, a knotty pine reproduction sill with fixed dimensions. These are legitimate hardware for ordinary doors. On a historic opening they fall short for three reasons.

They do not match the opening. Old frames are seldom square, plumb or level. A stock piece of fixed width will leave gaps at the jamb returns, and these gaps are exactly where water finds its way in.

They change the character of the entrance. A bright mill-finish aluminum strip beneath a paneled six-foot door is visible to anyone who stands on the porch, and a reviewer will see it as well.

They cannot be notched to a period casing. Historic trim often runs down to the floor on plinth blocks or returns past the sill. A custom threshold is coped around each of these details individually.

Fitting the piece: templates, contours and notches

Trade guidance on this is consistent. This Old House describes measuring the opening, cutting the threshold to length, beveling and easing the edges, sealing exposed grain, and notching around the stops for a tight seal. In an old opening with a crooked frame, a contour template is more reliable than a tape measure, and Fine Homebuilding’s threshold guide discusses getting a tight fit on both sides of the jamb, which it calls a time-consuming challenge.

For readers who want the general principles of how a door bottom threshold seals and why the fit is so unforgiving, this explanation of the door bottom threshold covers the basics of the seal between door and floor. The principles are the same for a nineteenth-century paneled door, although the materials and tolerances are not.

A typical custom fabrication sequence looks like this:

  1. Document the opening. Photograph, measure and trace the existing threshold and the jamb returns. Retain the old piece as a pattern even if it is badly decayed.
  2. Verify the substrate. Check the sill line, the floor or slab flatness, the frame bearing and any visible water source.
  3. Select the stock. Choose a species matched to the original, with straight, tight grain and suitable moisture content.
  4. Mill the profile. Cut the slope, drip groove, nose and rabbets to the traced section.
  5. Cope and test-fit. Notch around jambs, stops and casing, then dry-fit before any finish is applied.
  6. Seal and finish. Seal every cut surface, including the end grain, before installation.
  7. Install over a prepared water barrier. Bed and fasten the piece, and flash the intersections.

Water first, wood second

The most common cause of a failed threshold is not poor joinery but unresolved moisture. NPS Preservation Brief 47 on maintaining exteriors of small and medium-size historic buildings calls for inspecting wall openings from inside and out, and the maintenance guidance flags slipped or tipped thresholds and poorly performing seals and intersections as sources of deterioration.

For this reason an experienced shop diagnoses before it mills. Questions to answer on site:

  • Does the porch floor or landing slope toward the door?
  • Is there flashing under the sill, and is it intact?
  • Has the sill sunk, or has the jamb foot rotted?
  • Is rain driven under the door from a wide exposure, or does it enter through the masonry beside it?

The District of Columbia’s door repair and replacement guidelines describe doors as a principal ornamental and architectural feature of historic buildings, which is a good reason to resolve the opening’s condition thoroughly rather than patch it. If the sill line is not in plane, a perfectly milled threshold becomes a patch, and rot returns at the interface.

Concrete landings and nearly flush sills

Where a historic door opens onto a concrete or raised exterior landing, the threshold cannot be the only barrier. ArchitectureCourses.org notes that a nearly flush threshold removes the tolerance you would otherwise rely on, and cites the 2021 International Residential Code framework: exterior landing slope limited to a quarter inch in 12, with an egress door landing generally no more than 1½ inches below the top of the threshold, subject to exceptions. Your local jurisdiction’s adopted code governs, so confirm it with the building official before fixing the finished heights. In practice this pushes the design toward sill pans, flashing and drainage details beside the threshold itself.

Height, accessibility and the preservation reviewer

Historic entrances often have thresholds that are too high for current accessibility standards, and the conflict is a frequent source of well-meant but damaging substitutions. The facts are these.

The U.S. Access Board’s guidance on ADA entrances states that thresholds are limited to 1/2 inch in new construction, with a maximum of 3/4 inch permitted for existing or altered thresholds that have a beveled edge. For historic properties, NPS Preservation Brief 32 says that a threshold exceeding the allowable height may be altered, removed, or replaced with a compliant one, and that where the threshold is deemed significant, a bevel can be added on each side to reduce its height while keeping it compatible. The same brief advises reviewing all applicable local, state and federal accessibility requirements before any modification.

Two practical points follow. First, a custom beveled threshold can often satisfy both the code and the reviewer, whereas a stock aluminum ramp strip seldom does. Second, accessibility obligations differ by building type and jurisdiction, so an architect or accessibility specialist should confirm which standard applies to your particular building before the profile is finalized.

Height, accessibility and the preservation reviewer — overview diagram

Thresholds and the 20% historic tax credit

For income-producing certified historic structures, the federal credit is substantial. The NPS tax incentives brochure explains that the 20% credit equals 20% of the amount spent on a certified rehabilitation of a certified historic structure, and that, within a 24-month period chosen by the taxpayer, rehabilitation expenditures must exceed the greater of $5,000 or the adjusted basis of the building. That brochure is dated 2012, so confirm current figures and procedures with your State Historic Preservation Office and the NPS before relying on them.

A threshold is a small line in a budget, but it is part of the doorway, and a doorway is commonly a character-defining feature. The practical approach for the application is to:

  • Photograph the existing threshold and sill in place before work begins.
  • Provide scaled sections of both the existing and the proposed profile.
  • State the species, finish and method in the specification.
  • Explain any height modification and its basis, whether accessibility or drainage.
  • Show that repair was considered before replacement.

We discuss the same logic for sash and frames on our page about window millwork specifications for the 20% rehabilitation credit, and the principle of evidence-based replication carries over directly to doors.

Our perspective

We regard the threshold as the most underestimated part of a historic doorway. Owners notice the door, the fanlight and the casing, while the threshold quietly takes the weather and the foot traffic, and when it fails it takes the sill and the jamb foot with it.

Our work centers on exact replication using authentic materials and techniques, and that discipline is what makes a threshold behave. We begin with the opening, not the catalog: the old piece is traced, the sill line is checked, and the profile is drawn from evidence. We also accept the awkward requests, such as an out-of-square opening, an unusual period section or a door that must meet an accessibility height without losing its character, which stock suppliers decline.

Our advice to architects and contractors is to bring the millwork shop into the project before the door schedule is closed. A threshold specified at the last moment is one specified by guesswork, and guesswork is what reviewers and weather both find out.

— Gepetto

Specifying a custom threshold with us

We design, fabricate and restore wood doors, windows, trim, staircases and other architectural millwork for historic buildings, and a threshold is made as part of the doorway it belongs to. Our historic wooden doors page shows the kind of period entrances we build, and our solid wood door maker in Virginia page covers entry doors made to order. For the full range of made-to-order work, see custom fabrication, or contact us through the main site with photographs and measurements of your opening. We work in Virginia, West Virginia, North Carolina, South Carolina, Maryland and the District of Columbia. We do not publish prices, since each project is quoted individually.

What to send a millwork shop

A useful inquiry shortens the path to a quote. Include:

Item Why it matters
Photographs of the door from inside and out Shows the threshold, trim returns and exposure
Close photographs of the sill and jamb feet Reveals rot, slippage or previous repairs
Measured width, depth and opening height Establishes the baseline for the profile
Building date and style Guides species and profile choice
Tax credit or review status Determines documentation needs
Landing or floor condition inside and out Affects height and water details

If the building is under review, share the SHPO or design review comments as well, since they may restrict materials or finish.

FAQ

Can I get a custom door threshold made?

Yes. A millwork shop can mill a threshold to a traced profile, with notches and bevels cut to fit your jambs and stops. For a historic opening, supply photographs and measurements of the existing piece so the replica follows the evidence rather than a similar style.

What is the wood under a door threshold called?

It is typically the sill, the bottom member of the door frame. The threshold is the separate, often sloped piece installed on top of it to manage water and drafts. On some historic doors the two are combined in a single heavy timber.

Can I install an exterior threshold on concrete?

Yes, but the threshold should not be the only barrier against water. Landing slope and drainage affect how the detail works, and the 2021 IRC framework cited above limits landing slope and the drop below the threshold, so confirm local code. Sill pans and flashing usually do much of the work.

How high can a historic threshold be under accessibility rules?

The U.S. Access Board allows up to 3/4 inch for existing or altered thresholds with a beveled edge, against 1/2 inch in new construction. NPS suggests bevels on a significant historic threshold as a way to reduce height. Confirm the standard applicable to your building with an architect.

Sources

Egress Rules for Historic Windows: Codes, Exemptions, Options

Egress Rules for Historic Windows: Codes, Exemptions, Options

by | Oct 23, 2026 | Architectural Millwork

Egress rules apply to a historic window when a project triggers them, and the authority having jurisdiction (AHJ) decides how far. No blanket exemption protects an old sash from a modern code. The rules do bend for historic buildings, though. The International Existing Building Code (IEBC) and the Secretary of the Interior’s Standards give architects, contractors and owners several ways to keep an original window and still satisfy life safety. This guide sets out the sizes the code asks for, the situations that trigger them, the alternatives that preserve historic fabric, and what to do when replacement cannot be avoided.

Gepettomillworks
Preserve Historic Windows With Custom Millwork
Gepettomillworks creates custom millwork for historic building projects, supporting architects and owners weighing options for original windows.

Explore custom millwork

TL;DR

  • There is no automatic grandfathering for egress. Significant alteration, a change of occupancy or a major renovation can bring the requirement into play, and the AHJ rules case by case.
  • New-construction escape openings under IRC R310 are measured by net clear opening, not by the size of the frame or sash.
  • IEBC Chapter 12 lets the AHJ accept existing openings and alternative safety measures, such as sprinklers, when a historic feature cannot meet current dimensions.
  • Under the Secretary of the Interior’s Standards, egress alone is not a reason to replace a historic window, and any replacement must match the original’s appearance and materials.
  • Meet the code official early, with a written Historic Building Report, before the drawings harden.

Table of Contents

What the egress code asks of a window

The term “egress window” usually refers to what the International Residential Code calls an emergency escape and rescue opening. IRC R310.1 requires such an opening in each bedroom, and it must open directly to a public way or to a yard or court that reaches one.

The dimensional minimums are well known. In the 2006 edition of the IRC, the net clear opening is 5.7 square feet, with a minimum clear height of 24 inches and a minimum clear width of 20 inches. Grade-floor openings are allowed 5 square feet. Window wells serving openings below grade must provide at least 9 square feet of horizontal area, with a 36-inch projection. States adopt different editions and amend them, so confirm the figures against the code actually in force where the building stands.

Two points catch restorers out:

  • The figure is the net clear opening. It is the unobstructed area with the sash fully open and, for a double-hung, with the lower sash raised. It is not the glass size or the rough opening. A handsome six-over-six sash that measures 32 by 56 inches overall may leave a net clear opening well under the minimum, once the meeting rail, the stops and the sash thickness are deducted.
  • Both dimensions must be met together. A window can pass on height and width yet fail on area, or the reverse.

A 36 by 48 inch window, a size readers often ask about, can pass in some configurations and fail in others. A casement of that size opens nearly to its full clear dimensions. A double-hung of the same overall size exposes only about half its height. The operating type matters as much as the frame size.

Why a historic window is not automatically exempt

The word “grandfathered” circulates widely, and it misleads. Preservation guidance from the National Park Service, Preservation Brief 51, notes that compliance is generally triggered by significant alterations, a change of occupancy or renovation, and that the AHJ makes the final determination case by case. An unaltered house with original windows, used as before, generally sits outside the question. A rehabilitation that converts a third-floor storage room into a bedroom, or a warehouse into apartments, does not.

The common triggers are:

  1. Change of occupancy. A single-family house becoming a bed-and-breakfast, a school building becoming apartments.
  2. New sleeping rooms. An attic or basement finished as a bedroom, which then needs a compliant escape opening.
  3. Substantial renovation. Work classed as a Level 2 or Level 3 alteration under the existing-building code in force.
  4. Window replacement itself. Some jurisdictions apply escape-opening provisions to replaced windows. Provisions of this kind appear, for example, in Oregon’s amendments to IEBC Section 505, which set conditions on operable windows replaced complete with sash and frame. Local amendments differ widely, so check yours.

The practical consequence is that the earliest design decision, what the building will be used for, often determines the egress outcome more than the windows themselves.

The flexibility built into historic building codes

Chapter 12 of the 2021 IEBC is devoted to historic buildings. According to Preservation Brief 51, it supplies compliance pathways that allow alternatives to the standard egress requirements, provided original features are preserved, with the AHJ determining what is acceptable. The same document explains that existing door and window widths may be approved where they have sufficient passage capacity for the occupant load.

The operative idea is equivalent protection. Instead of enlarging the opening, the design team shows that occupants are no less safe by other means. Fire protection practice under NFPA 914, the code for fire protection of historic structures, is built on the same logic of protecting the structure and its occupants without stripping the fabric that makes it historic.

Which compensating measures are accepted is for the AHJ to decide. Those most often negotiated include:

  • An automatic sprinkler system throughout the building, which is the most commonly accepted trade for leaving original windows in place.
  • Interconnected smoke alarms, and in some cases a monitored detection system.
  • A secondary means of escape, such as a rear stair or a door at an upper landing.
  • Rated separation of sleeping rooms from the corridor, giving occupants more time.
  • Limits on occupant load or on the use of a given floor.

None of these is a right. Each is a proposal, and it succeeds when the documentation is persuasive.

Keep the window: options that preserve original sash

The National Park Service guidance on evaluating historic windows starts from Standard 6 of the Secretary of the Interior’s Standards for Rehabilitation: deteriorated historic features are repaired rather than replaced. Replacement is considered only where the severity of deterioration is documented. The same guidance advises designers not to treat code mandates as an automatic reason to replace, and to look first at improvements such as weatherstripping and storm windows.

For egress, the retention options run roughly from least to most intrusive.

Accept the existing opening with compensating safety

If the AHJ accepts the existing size, the sash is restored in place. The work then consists of repair: dutchman patches in sills and rails, reglazing, new cords or chains, and weatherstripping. A window that opens easily without tools is itself a life-safety asset, since a painted-shut sash cannot serve as an escape. Restoring operation can be part of the argument made to the code official.

Alter the operation without altering the appearance

Sometimes the problem is the clear opening of a double-hung. Options a restorer can examine include sash that can be removed quickly from the interior, a hardware arrangement that lifts the sash fully clear, or a lower sash fitted so that the full height of the frame becomes clear when it is tilted or detached. Whether any of these satisfies a given code official is a local question, and the solution must be reviewed against the operable-without-tools provisions in force.

Three ways to clear a double-hung window

Use a doorway or secondary opening

At a rear or side elevation, a compliant opening can sometimes be created or a door substituted, leaving the principal elevation untouched. The character hierarchy of the building guides where such change is least harmful: the street facade first, secondary elevations next, rear and side wings last.

When replacement is unavoidable

Sometimes the sash is lost, or the room cannot be saved by any compensating measure. The NPS guidance on replacement windows that meet the Standards divides the decision into two tracks, depending on whether historic windows remain in place or none survive. Where a window must be replaced, the replacement should match the historic window in visual qualities and materials. On less visible secondary elevations, the guidance allows a match in configuration and general characteristics at a minimum.

In practice that means:

Elevation Typical expectation Egress consequence
Street-facing, primary Exact match of profile, muntin dimensions, glass character and material Seek AHJ approval of the largest functional sash that fits the original frame
Secondary, side Match of configuration and general characteristics Greater room to enlarge or change the operating type
Rear, not visible Compatible design, with more latitude Compliant opening is usually easiest to achieve here

Practitioners often cite replacement in kind, or the largest standard size that fits the existing frame, as the point at which a code official may stop requiring full dimensions. Whether a jurisdiction recognizes that approach depends on the local amendments and on the official. Present it as a request with supporting drawings.

Two cautions for tax credit projects. First, the National Park Service reviews windows as a character-defining feature, and an egress enlargement on a prominent elevation can put certification at risk. Second, the sequence matters: describe the code constraint in the Part 2 application, along with the proposed solution, rather than discovering it during construction.

Working with the code official

Preservation Brief 51 recommends preparing a Historic Building Report early in design, documenting the code challenges and the equivalent solutions proposed. The aim is to show the AHJ that the project meets the spirit and intent of the life-safety provisions while protecting the historic fabric. A useful report is short and specific:

  1. A window schedule recording every opening: location, type, overall size, measured net clear opening, condition and significance.
  2. The use and occupant load proposed for each room, and which rooms need an escape opening.
  3. Photographs and measured sections showing why enlargement would harm the building.
  4. The compensating measures offered, such as sprinklers, detection or a secondary exit.
  5. A fallback: the closest-compliant replacement, drawn to match the original.

Bring the report to a meeting before submitting permit drawings. Code officials are more receptive to a problem presented with a solution than to one discovered at inspection.

Who pays when the code forces a change

Egress upgrades are a recognized source of unplanned cost in older buildings, and owners often assume their property insurance will absorb them after a loss. That depends on the policy. Coverage for the added expense of bringing a damaged building up to current code is a separate provision, and its limits and wording vary. A practical overview of ordinance or law coverage explains how it works, and it is worth reading before a loss occurs, since a historic building rebuilt after a fire may meet a code requirement for escape openings that its original windows never had to satisfy.

Our perspective: the window as evidence

We build and restore wooden windows for historic buildings, and egress is a conversation we have often with architects and contractors. Our view is that the debate is rarely between safety and preservation. It is a matter of sequence and evidence.

An original sash carries information that a replacement cannot: the section of its muntins, the profile of its meeting rail, the character of its glass and the joinery of its corners. Once it is removed, that evidence is gone. For that reason we begin with the question of whether the opening can be accepted as it is, with a restored and freely operating sash, and only then ask what a replacement would have to be.

Our perspective: the window as evidence — overview diagram

When replacement is the only route, the work is an exercise in replication. Our approach to exact historic reproduction, using authentic materials and period techniques, is intended to keep a project eligible for historic tax credits, and we are glad to take on windows of unusual geometry that other shops decline. We treat the largest functional sash that fits an original frame as a design problem: sash stiles slimmed to the historical dimension, hardware chosen to maximize the clear opening, and the visible profile left unchanged.

Our counsel to project teams is to measure the net clear openings before the first meeting, put the schedule in front of the code official, and bring the millwork conversation in while the design is still flexible.

— Gepetto

Restoration and replica work from Gepetto Millworks

We restore original sash and frames through our historic window restoration service, and where a window cannot be saved we fabricate wooden windows to match the original profile, with options for dual pane glazing. If your project needs a code-conscious window schedule, send us the drawings and the measured openings, and we will tell you what can be restored and what must be replicated. You can reach us through our main site.

FAQ

Are historic windows grandfathered for egress?

Not as a general rule. Existing conditions are often left alone when nothing changes, but a significant alteration, a change of occupancy or a renovation can trigger current requirements. The AHJ then decides, case by case, whether to accept the existing opening, require compensating measures or require a compliant replacement.

Does a 36 by 48 inch window meet egress?

It depends on the type and on the net clear opening. A casement of that size can open close to its full dimensions, while a double-hung exposes about half its height. Measure the unobstructed opening with the window fully open, and compare it with the area, height and width minimums in the code your jurisdiction has adopted.

Do all bedrooms need an egress window?

In new construction under the IRC, yes: R310.1 requires an emergency escape and rescue opening in each bedroom. In an existing historic building, the AHJ may accept alternatives under the historic provisions of the existing-building code, such as sprinklers.

Can I replace a historic window for egress and still qualify for the federal tax credit?

Potentially, but the Standards set conditions. Replacement is considered only where deterioration is severe and documented, and the new window must match the historic one in visual qualities and materials. Secondary elevations allow more flexibility. Raise the issue with your State Historic Preservation Office and the National Park Service before work begins.

Sources

Solid Wood Joinery Built to Last: Choosing a Custom Door Maker

Solid Wood Joinery Built to Last: Choosing a Custom Door Maker

by | Oct 22, 2026 | Architectural Millwork

A custom wood door lasts when four things agree: a frame joined with mortise and tenon, a species suited to weather, a design that keeps water away from end grain, and a maker who will document all three. Glue lines, veneers and dowels can imitate the look of a good door for a few seasons. Only sound joinery in solid stock, protected by a sealed finish and a sensible opening, carries one across generations. This guide is written for architects, contractors and owners of historic buildings who are specifying doors and need to judge a door maker on evidence rather than on photographs.

Gepettomillworks
Choose a Door Maker for Historic Projects
Gepettomillworks creates custom millwork for historic building projects, including solid wood doors, historic replications and restorations.

Explore Gepettomillworks

TL;DR

  • Frame-and-panel doors with mortise-and-tenon joints keep end grain exposure to the top and bottom of the stiles, which is where moisture does its damage, according to the National Park Service.
  • Joinery cannot defeat moisture alone. Sealed surfaces, drip details and protective overhangs decide the real service life.
  • On a tax-credit project, a replacement door should replicate the original’s material, dimensions and paneling pattern, so the maker must work from measured documentation.
  • Ask any door maker about species, lumber grade, panel float, finish schedule and who is responsible for site humidity before signing.
  • We build solid wood doors, historic replications and restorations in Virginia and across the Mid-Atlantic and Carolinas.

Table of Contents

What “built to last” means in a wood door

The phrase is easy to print and hard to prove, so it helps to define it in terms a contractor can check. A door built to last keeps its geometry, so that it closes without binding, and it keeps its joints tight through repeated cycles of swelling and shrinking. Its finish can be renewed without stripping failed layers, and any single component, a bottom rail or a panel, can be repaired without scrapping the leaf.

Stile and rail construction meets these requirements better than any alternative, which is why it has been the standard from Georgian townhouses to Craftsman bungalows. Two vertical stiles and two or more horizontal rails form a frame, and the panels float in grooves rather than being glued in, so the wood can move seasonally without splitting the frame. Our own guide to stile and rail doors covers anatomy, styles and tolerances in more detail.

The Architectural Woodwork Institute makes the same point in its door standards: stile and rail doors have performed for centuries, but their longevity in modern projects depends on keeping surfaces painted or sealed and on shelter from architectural elements such as deep overhangs or recesses. A door is a system, and the joinery is only one member of it.

Why mortise and tenon still outperforms the shortcuts

A mortise is a rectangular cavity cut into one member. A tenon is the matching tongue cut on the end of another. When the tenon is fitted snugly, pinned or wedged, and glued where the design calls for it, the joint resists racking, the force that pulls a heavy door out of square over decades of swinging on its hinges.

Pinned mortise and tenon door joint

The National Park Service handbook on historic lighthouse doors, written for some of the most weather-beaten entrances in the country, notes that frame-and-panel doors with mortise-and-tenon joints limit end grain exposure to the top and bottom of the stiles. That detail matters because end grain absorbs water far faster than face grain. A joint design that hides most end grain inside the assembly gives rain fewer places to enter.

What a good joint looks like in practice

When you review shop drawings or visit a shop, look for the following:

  • Through stiles. Continuous vertical members place uninterrupted grain at the hinge line, so the weight of the leaf is carried by long fibers and not by rail ends.
  • Tenon depth and thickness. Deep, properly proportioned tenons on the lock and bottom rails, which carry the most stress. Ask for dimensions rather than reassurance.
  • Floating panels. Panels should sit in grooves with room to move. Panels glued rigidly into the frame are a warning sign of future cracking.
  • Hand-hewn or hand-fitted work where the period demands it. On some historic projects the tooling marks and proportions are part of the character. We document this approach on our page about custom wood doors with hand-hewn mortise-and-tenon joinery.

Where engineered shortcuts fail

Engineered products have a place in millwork. Industry literature summarized in the AWI standards acknowledges that they reduce cost and speed production, yet it also cautions that nonconforming engineered products may not resist the high-use and environmental stress that traditional solid wood joinery has withstood for generations. On an exterior entrance, particularly one facing weather, that caution deserves weight.

There is one honest exception. For paint-grade interior or protected trim, some professionals specify medium density overlay because its surface takes enamel without grain raising or visible joint lines. That is a judgment about surface stability on specific components, not a reason to build a front door from sheet goods. A reputable maker will tell you which parts of a project suit each material and why.

Moisture is the real adversary

The National Park Service identifies moisture penetration, from rain, standing water on sills and interior condensation, as the primary cause of door deterioration, and notes that damp climates where wood cannot dry between storms accelerate rot. Much of Virginia, the Carolinas and the Chesapeake shoreline, including island communities such as Deal Island, fits that description for much of the year.

Two practical consequences follow for specifiers.

Water must be shed, not merely resisted. A sloped sill, a drip kerf or cap on the bottom rail, a properly flashed head and a deep porch or overhang do more for a door than any additional coat of varnish. The AWI standards point to protection from recesses and overhangs for that reason.

End grain at the base of the stiles needs attention. Water wicks upward through the bottom of a stile and can rot the core long before the surface shows anything. The NPS guidance recommends gentle diagnostic probing with an awl or similar tool in an inconspicuous spot: long, fibrous splinters suggest sound wood, while short, irregular pieces suggest structural breakdown. For an owner, a yearly probe along the bottom six inches of each stile is the cheapest insurance a door can have.

Pests belong in the same conversation, because damp wood invites them. If you are buying or selling an older Virginia property, this overview of termite inspections in Virginia explains what the process involves and what both parties should expect, which helps you plan door and sill repairs around the findings.

Species, grade and treatment

For exterior work the AWI lumber standard sets a clear rule: unless the species is classified as resistant or very resistant to decay in the USDA Forest Products Laboratory Wood Handbook, lumber must be preservative-treated in accordance with WDMA I.S. 4-15. The same AWI lumber requirements also reject standard lumber-association grading for architectural quality, because even the highest of those grades permit defects unacceptable in finished millwork and are based on a percentage of the board rather than the whole board.

In plain terms, that gives you three questions for a door maker:

  1. Which species is proposed for each component, and is it rated resistant or very resistant to decay?
  2. If the species is not rated that way, what preservative treatment is specified, and to which standard?
  3. How is the lumber graded, and is the grading based on the use of the whole board?

A maker who answers these without hesitation has probably been through a specification review. One who answers with brand names and adjectives has probably not.

Doors on historic buildings: the replication question

Historic work adds a second test beyond durability: fidelity. The National Park Service technical note on inappropriate replacement doors states that when a missing door is replaced, the new unit should replicate the original’s material, dimensions and paneling pattern, and that an inappropriate substitute can damage a building’s historic integrity. The same document recommends consulting a historical architect or building conservator to prepare contract documents so that treatments follow the Secretary of the Interior’s Standards.

A companion NPS note on entrance treatments shows the practical version of this: replacing an ornamental steel door with a six-panel wood door, and reproducing the historic sidelights and transom from photographic documentation. Evidence comes first, and the door follows from it.

Tax credits and who approves what

In Virginia, the Department of Historic Resources administers both the federal and state rehabilitation tax credit programs, and the state program requires compliance with the Secretary of the Interior’s Standards for Rehabilitation. Work outside those standards puts the credit at risk, so a door that is merely handsome is not enough. Confirm the current rules and your project’s status with the DHR, your State Historic Preservation Office in other states, and your tax adviser before you commit to a design.

For the door maker, this means three deliverables: measured drawings of the existing or documented original, a species and finish proposal consistent with the period, and the ability to show a reviewer how each detail matches. Muntin profiles, panel moldings, stile widths and hardware mortises should be recorded, because reviewers read details.

Repair before replace

Preservation guidance favors the gentlest means possible. If probing shows sound wood, a door can often be repaired with dutchman patches, new bottom rails or consolidated joints rather than replaced. Restoration keeps original fabric, which is what a historic review values most. Where decay has gone through the structure, replication becomes the correct path, and the joinery you specify decides how long the second door will last. Our archive on restoring solid wood doors shows how this plays out on actual projects.

Who is responsible when a door moves

Wood changes dimension with humidity, and a high-quality door is not immune. The AWI care and storage standard divides responsibility by project phase: design choices that ignore movement fall to the architect, failure to control site humidity during installation falls to the general contractor, and lack of environmental control after occupancy falls to the owner.

That division is worth discussing at the preconstruction meeting rather than after a door sticks in August. Practical agreements include:

  • Delivering doors only to a building that is enclosed and conditioned within a stated humidity range.
  • Sealing all six faces, including top and bottom edges, before hanging.
  • Writing the finish schedule and re-coat interval into the owner’s maintenance manual.
  • Recording clearances at hinge, strike and head so seasonal movement does not become a dispute.

How to vet a custom door maker

Because pictures flatter every shop, ask for the following before awarding the work.

Question What a strong answer sounds like
How are the frames joined? Mortise and tenon, with tenon dimensions given on drawings
How do panels sit? Floating in grooves, with allowance for seasonal movement
What species and grade? Named species, decay resistance stated, whole-board grading
How is end grain protected? Sealed before assembly, drip detail on the bottom rail
Can you work to a historic standard? Measured drawings, period profiles, documentation for reviewers
What is the finish and maintenance plan? A written schedule, with re-coat intervals
What do you decline? An honest list of jobs outside the shop’s scope

The last row sounds odd but tells you a great deal. A shop that accepts every job has either enormous capacity or very little discipline.

Our perspective

We have found that most door failures we see trace back to water at the bottom of the door rather than to a failed joint in the middle of it. The joinery is usually fine; what fails is the detail that let moisture reach end grain and stay there. For that reason we start a door conversation with the opening itself: its exposure, its sill, its overhang, and what the building’s period would have done about each.

Our perspective — overview diagram

Our work centers on historic projects, so we approach every door as an exercise in matching evidence: the original’s proportions, its panel moldings, its species where it can be determined, and the tooling of its era. When a project needs a replica to meet the standards behind historic tax credits, we use authentic materials and traditional techniques so that the reviewer sees what the building actually had. We also take on complex, architecturally significant requests that other shops decline, and we would rather tell you early that a design will not age well than build it and watch it fail.

Solid wood is not forgiving of neglect, and we say so plainly. A mortise-and-tenon door in a resistant species, finished on all faces and maintained, is a century-long asset. The same door left unsealed under a dripping eave is not.

— Gepetto

Working with Gepetto Millworks

If you are specifying doors for a historic building, a restoration or a high-end new build, our solid wood door manufacturing page describes how we build, and our historic wooden doors page shows period work. We serve projects in Virginia, West Virginia, Virginia Beach, North Carolina, South Carolina, Washington, D.C. and Maryland, including the Deal Island Historic District. Architects and contractors can bring drawings, photographs or a field survey to our custom fabrication team and we will tell you what the opening, the budget and the review standards allow.

Questions readers ask

Is solid wood always better than an engineered door?

For an exterior entrance exposed to weather, traditional solid wood joinery has the longer track record, and the AWI standards caution that engineered substitutes do not always match its performance. Engineered or overlay materials can suit protected, paint-grade components. The right answer depends on exposure, finish and the standard the project must meet.

How long should a custom solid wood door last?

No honest maker can promise a number without knowing exposure and maintenance. Well-built mortise-and-tenon doors have served for centuries when kept sealed and sheltered, but the NPS identifies moisture as the primary cause of deterioration. Inspect the base of the stiles each year and renew the finish before it fails.

Can a new door qualify for historic tax credits?

It can if it replicates the original’s material, dimensions and paneling pattern and fits the Secretary of the Interior’s Standards, per the NPS guidance on replacement doors. Approval rests with the reviewing agencies, not the door maker, so confirm requirements with your State Historic Preservation Office before ordering.

Should I repair a historic door or replace it?

Probe inconspicuous areas first. Fibrous splinters suggest sound wood that can often be repaired, while short, brittle fragments indicate structural decay. Preservation guidance favors the gentlest effective treatment, and replication is the choice when the original cannot be saved.

Sources

Historic Tax Credit Documentation: What Reviewers Expect

Historic Tax Credit Documentation: What Reviewers Expect

by | Oct 21, 2026 | Architectural Millwork

Historic tax credit documentation is the written and visual record that proves three things to reviewers: the building is a certified historic structure, the proposed work respects its character, and the finished work matches what was approved. For the 20% federal credit, that record is a three-part application, reviewed first by the State Historic Preservation Office (SHPO) and then by the National Park Service (NPS). Most delays do not come from rejected designs. They come from thin photographs, missing window sections and narratives that never explain why a decision was made.

This guide is written for architects, general contractors and owners of historic buildings. It covers what each part must contain, where millwork records decide the outcome, and how to assemble a package that reviewers can approve without a second round of questions.

Gepettomillworks
Document Historic Millwork Clearly
Gepettomillworks creates custom millwork for historic building projects, supporting teams documenting work that respects a building’s character.

TL;DR

  • The federal credit equals 20% of qualified rehabilitation expenditures and is claimed over five years; it rests on a three-part application submitted through your SHPO.
  • Drawings never replace the written narrative. Reviewers need the reasoning behind each decision, keyed to numbered drawings and photographs.
  • Replacing a historic window requires proof that it is deteriorated beyond repair, with elevations and vertical and horizontal sections of both the old and new units.
  • Seek approval before construction begins. Starting first puts the credit at financial risk.
  • Keep dated before, during and after photographs, along with fabrication records for every replicated element.

Table of Contents

How the three-part application is structured

The NPS describes the process as a sequence in which each part answers a different question. According to the NPS application process page, Part 1 documents the significance and appearance of the building, Part 2 describes the proposed rehabilitation in light of the Secretary of the Interior’s Standards for Rehabilitation, and Part 3 certifies that the completed work meets those Standards. The application goes to the SHPO, which forwards it with a recommendation to the NPS.

Three application parts and review sequence

Two procedural facts matter for planning. Since August 2023, applications must be submitted electronically as individual PDF files, a requirement the Virginia Department of Historic Resources also repeats for its own applicants, along with a hard-copy requirement for the state review. And each part is generally reviewed within 60 days: roughly 30 at the state level and 30 at the federal level, per the NPS page above. A project with four months of mobilization ahead should treat those weeks as part of the schedule, not an afterthought.

The NPS application overview also notes that the credits are available for projects the Secretary of the Interior designates a certified rehabilitation of a certified historic structure. The designation comes first. Everything else depends on it.

Part 1: proving the building qualifies

Before a credit can be claimed, the building must be a certified historic structure. The IRS rehabilitation credit page explains that the credit is found in Internal Revenue Code Section 47, and the NPS evaluates whether a building is individually listed or contributes to a registered historic district.

For Part 1 the documentation is largely evidentiary:

  • Photographs of the exterior, interior and setting, showing the building as it stands today.
  • A description of its physical appearance and its history, including alterations that have already occurred.
  • A statement of significance tied to a period and area of significance. The NPS publishes separate Part 1 documentation requirements for preliminary determinations, which apply when a building is not yet listed or its district boundaries or period of significance are in question.

A frequent error is describing the building as it was originally designed rather than as it exists. Reviewers want to know what survives: original sash, staircases, door surrounds, plaster profiles, hardware. A Part 1 that inventories surviving fabric accurately makes the Part 2 argument far easier, because you can point to features worth saving and features already lost.

Part 2: the proposed work, where most applications are won or stalled

Part 2 is the technical heart of the file. It must describe every element of the rehabilitation clearly enough that a reviewer who has never visited the site can judge whether it meets the Standards.

Narrative first, drawings second

The NPS documentation requirements are explicit that drawings give technical context but cannot stand in for a detailed written narrative. The strongest narratives explain the why: what condition was found, what options were considered, and how the chosen treatment preserves historic character. A sentence such as “windows to be replaced” invites questions. A sentence that records the sill rot, the failed joinery and the proposed profile match answers them in advance.

Rot and failed joinery on historic window sill

The Advisory Council on Historic Preservation’s report on the Standards adds useful context: the Standards are meant to be applied reasonably, with economic and technical feasibility in mind. Treat them as principles to be argued from evidence, and bring your SHPO reviewer in early, before the drawings harden.

Drawings and photographs that keep the file moving

Drawings should be numbered and keyed to the narrative, according to the NPS documentation page. Practical guidance drawn from NPS requirements and practitioner experience:

  1. Isolate each rehabilitation zone on its own sheet rather than submitting one dense set of plans.
  2. Flatten PDFs and name files according to the NPS electronic submission conventions.
  3. Key every photograph to a photo plan and to the narrative paragraph it supports.
  4. State existing deficiencies plainly. The NPS needs to be persuaded that the work is necessary preservation, not elective renovation.
  5. Avoid redundant sheets. Volume is not detail.

Windows: the most scrutinized element

Windows carry disproportionate weight because they define a facade. Where replacement is proposed, the NPS states that applicants must demonstrate the existing historic windows are deteriorated beyond repair, and must submit detailed drawings of both the historic and the new windows with the Part 2 application. Those drawings must include elevations and vertical and horizontal sections that show the window in relationship to the wall assembly.

In practice, that means a reviewer should be able to compare, in one glance:

Element What to document for the existing window What to document for the proposed window
Overall unit Measured elevation, opening size Matching elevation and opening
Sash and frame Section showing rail, stile and sill profiles Section showing the same dimensions
Muntins and glazing Muntin width, glass type, lite pattern Muntin profile, glazing method, glass type
Condition Keyed photos of failures, rot or loss Not applicable; reference the condition record
Wall relationship Jamb depth, reveal, sill pitch Same, shown in section

A muntin that is a few hundredths of an inch wider than the original, or a sill with a different pitch, is the sort of discrepancy that produces a request for more information. The documents need measurements from the surviving window, which is why millwork should be measured and drawn before demolition, not after.

What counts as qualified expenditure

Documentation also supports the dollar figure. The IRS guidance on qualified rehabilitation expenditures generally limits QREs to costs properly chargeable to a capital account for structural and architectural features of a certified historic structure. Eligible items include walls, floors, ceilings, windows, doors, wiring, plumbing, and architect or engineering fees. Acquisition costs, furniture, landscaping, parking lots, sidewalks, signage, and new construction or enlargements are excluded.

The practical consequence: invoices should separate eligible from ineligible work. A millwork invoice that lumps a restored window sash together with freestanding furniture forces an accountant to guess. Itemize by element, and tie each line to the drawing number in your Part 2 file.

Part 3: documenting what was actually built

Part 3 asks the NPS to certify that the completed work matches the approved work. The documentation is mainly photographic. The NPS documentation requirements call for high-resolution color photographs of exterior, interior, site and environment, keyed to a photo plan and the narrative. If the images cannot demonstrate compliance, the application is placed on hold, which delays certification.

A simple discipline prevents this:

  1. Photograph every room and elevation before work, from marked positions.
  2. Repeat the shots from the same positions during work, particularly when hidden conditions are exposed.
  3. Retake them at completion, using the same numbering as the Part 2 photo plan.
  4. Record any approved field changes in writing, with the reviewer’s acknowledgment, because a change that was never approved is the usual source of a Part 3 conflict.

Timing, pre-approval and recapture

The NPS notes that it is technically possible to apply after construction begins, but owners who do so take on significant financial risk, since the completed work may not be certified if it does not meet the Standards. A contractor who has already removed original sash cannot undo that.

After certification, a different record matters. The credit is subject to a five-year recapture period. The IRS FAQ states that recapture is 100% if the property is disposed of within one full year after being placed in service, and falls by 20 percentage points for each later year. Owners considering a sale or exchange within that window should read how a Section 1031 exchange affects taxable gain and speak with a tax professional before acting, because a disposition can trigger recapture regardless of how perfect the documentation was. The credit itself is claimed ratably over five years on Form 3468, per the NPS page, so your CPA should receive the final certification and expense ledger together.

Our perspective: millwork is documentation too

From the shop floor, a tax credit file is only as strong as the physical objects it describes. We fabricate and restore wood windows, doors, trim, staircases and casework for historic buildings, and we replicate period features so that new work matches what the Standards expect. What we see repeatedly is that the drawings reviewers ask for are the same drawings a craftsman needs to build the piece correctly: a measured section of the original rail, the muntin profile, the sill slope, the joinery type.

That overlap is the argument for involving the millwork shop during Part 2 rather than after approval. When the person who will cut the profile also helps produce the section drawing, the proposed window in the application is the window that arrives on site. Our approach is to repair original fabric wherever it can be saved, and to replicate exactly, in authentic materials and with period techniques, where it cannot. In both cases, we recommend recording the condition evidence that justified the decision, because that is what a reviewer will ask to see.

We also take on architecturally significant and unusual commissions that other shops decline. If the original detail is elliptical, raked, or carries tracery that no catalog offers, a documented replica is possible, provided the measured evidence exists. Gather it before demolition.

— Gepetto

A pre-submission checklist for project teams

Before the package leaves your office, confirm each of these:

  • Part 1 certification or preliminary determination is in hand.
  • The narrative addresses every room and elevation affected, including the reasons for each treatment.
  • Every drawing is numbered and referenced from the narrative.
  • Every window or door proposed for replacement has a condition photograph and matching old-and-new sections.
  • Photographs are keyed to a plan, high-resolution and in color.
  • Files are flattened PDFs, named per NPS conventions, and signed as required.
  • Your SHPO reviewer has seen the scope informally.
  • The cost ledger separates qualified from non-qualified work.

State programs add their own paperwork. Our own notes on the federal credit and the South Carolina state credit and on window millwork specifications for NPS review cover regional details; for Virginia, consult the Department of Historic Resources directly.

Working with us on credit-eligible projects

If your project includes windows, doors, stairs, trim or casework in a certified historic structure, we can contribute measured field documentation, replication drawings and fabrication in support of your Part 2 narrative. Start with our historic window restoration and wooden windows pages, or see the wider range of custom fabrication, from entry doors and balustrades to period staircases. We work with architects, contractors and owners across Virginia, West Virginia, North Carolina, South Carolina, Maryland and Washington, D.C. Send drawings or photographs of the existing conditions through our site, and we will tell you plainly whether repair or replication is the better path.

FAQ

How long does the NPS take to review each part?

Each part is generally reviewed within 60 days: about 30 at the state level and 30 at the federal level. Incomplete photographs or missing window sections can extend that time, so build the schedule around a complete first submission.

Do drawings replace the project narrative?

No. The NPS treats drawings as technical context and the narrative as the explanation of why each choice respects historic integrity. Submit both, and key them to one another.

Can I start work before approval?

It is technically possible to apply after work begins, but you assume real financial risk, because the completed work may not be certified if it fails the Secretary of the Interior’s Standards. Obtain Part 2 approval first.

What must I show to replace historic windows?

You must demonstrate that the existing windows are deteriorated beyond repair. Submit detailed drawings of both old and new windows, including elevations and vertical and horizontal sections in relation to the wall assembly, with Part 2.

Sources
